We at Winekeep, manufacture customized wine cellar rooms; as a standard-sized kit or custom designed according to the exact specifications of the customer.

Winekeep Info

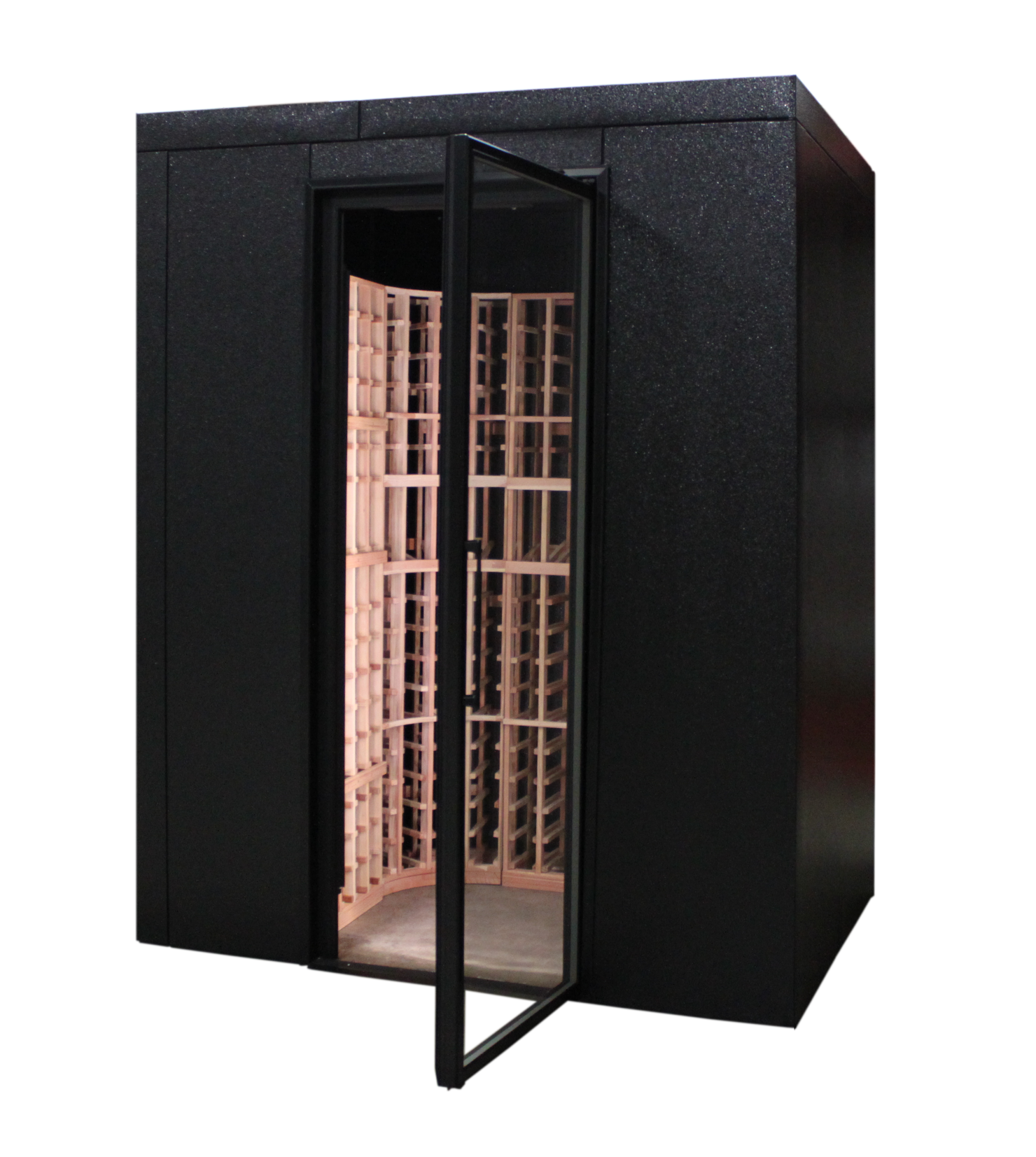

WineKeep manufactures customized wine cellar rooms either as a standard-sized kit or as a custom design according to the exact specifications of the customer. All panels meet the new EISA laws regulating cooled rooms at 55 degrees or colder. By utilizing the highest quality materials, WineKeep’s manufactured rooms provide the ultimate in flexible design configuration, quality, and ease of assembly. From the initial quote and approval drawing to the time the product is shipped and delivered, the customer is kept informed of the status of their order by our dedicated team of sales professionals.

SPECIFICATIONS GENERAL

Wine Lockers shall be constructed of prefab, precision-formed, modular panels designed for accurate, rapid field assembly. Lockers shall be test assembled at the factory and shall be equal to those manufactured by WineKeep.

PANEL CONSTRUCTION

Each panel shall consist of inner and outer metal skins, a 4″ insulation core, and be equipped with cam-action locking devices. The locking devices shall be operable from inside the walk-in and a hex-shaped wrench shall be supplied. Press-fit plug buttons shall be provided to seal wrench holes after assembly is complete. Construction shall be as approved by the National Sanitation Foundation International and shall bear the NSF® Seal of Approval.

FLOOR SCREEDS

Floor screeds shall be provided for all floorless units. The screeds shall be vinyl and have NSF® approved cove both inside and out.

BOX SIZE

Standard Wine Room Sizes: Nominal Size

6’2”x4’8”x7’6” (6’x5’)

5’10”x7’10”x7’6” (6’x8’)

7’10”x7’10”x7’6” (8’x8’)

7’10”x9’9 ½”x 7’6” (8’x10’)

9’9 ½”x 9’9 ½”x7’6” (10’x10’)

Custom sizes available upon request.

GLASS DOORS

Normal temp, 30”x81” lockable glass entry door with LED lights.

SHELVING

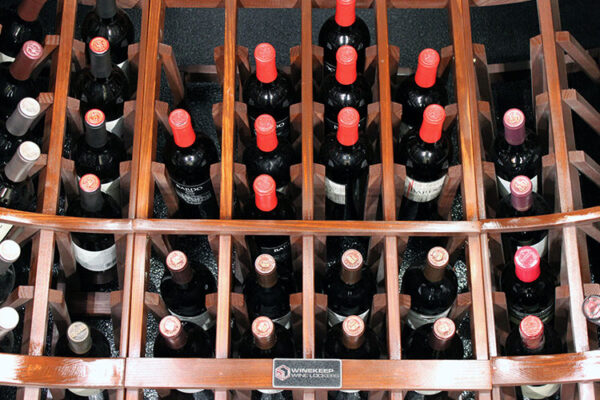

Wine racks and custom shelving options available.

REFRIGERATION

Pre-assembled indoor remote refrigeration system, medium temperature,
1 phase, 1/4 horsepower, hermetic 115 volt, includes Copeland condensing
unit. Does not include refrigerant.

DRAWINGS AND INSTRUCTIONS

Each locker has a set of installation instructions and layout drawings. All panels are constructed with panel identification corresponding with the layout drawing to facilitate rapid and accurate field erection.

CAM LOCK PANEL FASTENER

All panels shall be connected to one another by placing the tongue of the insulation core of one panel into the groove of the core insulation of the adjacent panel. The resultant tongue and groove joint shall be sealed at both sides by double-barreled NSF® approved gaskets. In order to avoid future swelling and mold formation, no wood shall be permitted in the manufacture of the tongue and groove panel profile.
Designer metal colors are available

PANEL FINISH

Metal finish of the panels shall be as follows. Interior or exterior walls, and ceilings
• black stucco embossed galvanized

INSULATION

Extruded Polystyrene: All wall and ceiling insulation shall be 4” thick, high quality, rigid extruded polystyrene, 1.6 lb density. The K factor of not more than .139 with an R factor of no less than 7.2 per inch, initial fresh R-28.8 minimum total wall R factor. Vapor transmission shall be less than 1 perm and foam core material must meet UL 5 flame spread rating with average smoke rating less than 165. (UL 723)(UL 723)

Live Lasvishly!

Upgrade your life to the next level.
Upgrade today!

CUSTOMER FREQUENTLY ASKED QUESTIONS

How do you package your wine lockers?

Most walk-in manufacturers would say that their major customer service issue is shipping damage. Wine Lockers by nature are somewhat fragile when pitted against a raging forklift or crazy two-wheel cart. Winekeep has engineered a shipping system that all but eliminates the normal damage seen by our competitors. A pallet is provided as a shipping base for each walk-in. Packaging foam is installed between each panel and on long hauls plywood is installed around the outer sides of the pallet. Then everything is wrapped in plastic and marked fragile for shipping. We also try to eliminate transfers from trucking company to trucking company to reduce transfer problems. Overall, Winekeep does all it can to see that the product arrives at your location in the quality shape that it left our plant.

How do I unload my box when it gets here?

To reduce damage our Wine Lockers are shipped on a skid. Once it is at your site it will need to be unloaded with a forklift or the unit will have to be unloaded off the skid piece by piece from inside the truck. This is a three to four-man job not counting the trucker. Time is a consideration as some trucking companies charge extra for extra long unloading times.

Who services your lockers and refrigeration systems?

Winekeep has a nationwide service network to service our lockers and refrigeration systems. Call your in-house sales representative for the service dealer near you.

Do you offer an extended compressor warranty?

Yes. Winekeep offers the following refrigeration system warranties.

1. Standard at no extra charge is one-year parts only warranty on all parts.

2. One year from day one through day 365 extended labor warranty.

3. 2nd year through 5th year extended parts warranty with 1st day through 5th-year labor warranty. No compressor.

4. 2nd year through 5th year extended parts warranty with 1st day through 5th-year labor warranty, including the compressor.

5. 2nd year through 5th-year compressor only warranty with 1st day through 1st-year labor warranty.

Note: Item 2 through 5 are offered at an additional charge.

At the present time, no labor warranty is provided on the walk-in panels other than our standard return-fix or replace standard 10-year limited panel warranty.

How long will it take to get here after it ships?

Delivery is always dependent on the location that is receiving the shipment and where the shipper is located. Winekeep is located in the center of the country so the entire United States is accessible in a very reasonable ship time. Most of our orders are next day shipments meaning that if your Wine Locker ships today you will receive it tomorrow. Other areas take a little longer but are always within ten days of shipment. Winekeep consistently negotiates with carriers to receive the best rates, quality control and quickest delivery possible

How hard is it to install your Wine Lockers?

All Wine Lockers are test assembled in our plant before shipment to assure that all the panels and parts fit nicely together and meet our stringent quality standards. We provide a layout drawing with each panel labeled and an installation manual with pictures to assist in easy assembly. Our product will go together better than any other on the market. Most installation problems, if any, have to do with site preparation. By taking your time and following instructions any person should be able to install a Winekeep Wine Locker.

What kinds of warranties are available?

Winekeep’s standard Limited Warranty is 10 years on panels and one year on parts. No labor is included. The Limited Warranty is provided to the first owner of the unit as standard. However, we believe that many of our customers want to have a more inclusive warranty and therefore we offer the following optional limited warranties on refrigeration systems.

1. Extended 2 through 5-year compressor warranty with no labor included.
2. 1st day through 1st-year parts and labor warranty.
3. 1st day through 5th-year parts and labor warranty.
